These specifications describe the lead taping packing of electrolytic capacitors with radial lead for automatic insertion systems.
LEAD TAPING
Lead taping is designed for automatic insertion equipment, Ø4 ~ Ø13 mm x 7 ~ 26 mm.
D =
Ø4, Ø5, Ø6.3, Ø8 |

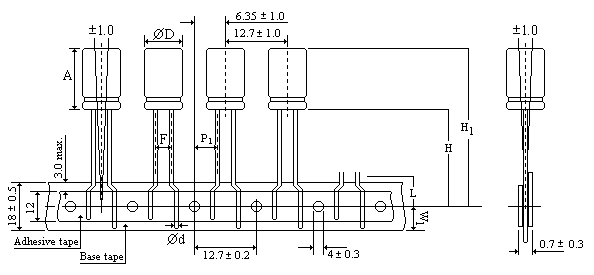

| Figure 1 |
D = Ø3, Ø4, Ø5 |
| Figure 2 |
D = Ø6.3 |

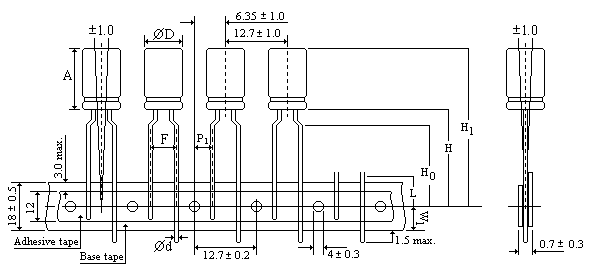

| Figure 3 |
D = Ø10, Ø13 |

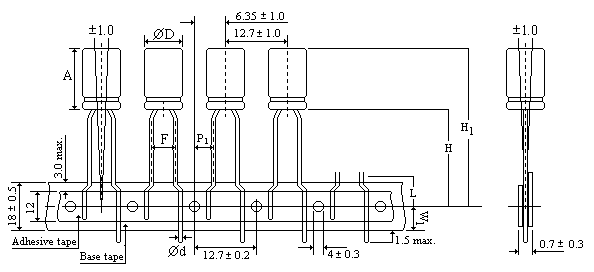

| Figure 4 |
DIMENSIONS (Unit: mm)
| Item | Symbol | Tolerance | Normal Value | |||||||||
| Figure | --- | --- | 2 | 1 | 2 | 1 | 2 | 1 | 3 | 1 | 4 | 4 |
| Body diameter | D | ± 0.5 | Ø3 | Ø4 | Ø5 | Ø6.3 | Ø8 | Ø10 | Ø13 | |||
| Lead wire diameter | d | ± 0.5 | 0.4 | 0.45 | 0.5 | 0.5 | 0.5 | 0.6 | 0.6 | |||
| Body height | A | Max. | 6 | 8 | 12.5 | 12.5 | 12.5 | 21 | 26 | |||
| Hole center to lead distance | P1 | ± 0.7 | 5.1 | 3.85 | 5.1 | 3.85 | 5.1 | 3.85 | 5.1 | 3.85 | 3.85 | 3.85 |
| Lead to lead distance | F | +0.8 -0.2 |
2.5 | 5.0 | 2.5 | 5.0 | 2.5 | 5.0 | 2.5 | 5.0 | 5.0 | 5.0 |
| Hole position | W1 | ± 0.5 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | 9.0 | |||
| Height of body from tape center | H | ± 0.75 | 17.5 | 18.5 | 18.5 | 18.5 | 20 | 18.0 | 18.0 | |||
| Lead wire clinch height | H0 | ± 0.5 | -- | 16 | -- | 16 | -- | 16 | -- | 16 | - | - |
| Component height | H1 | Max. | H+A | |||||||||
| Length of snipped lead | L | Max. | 11 | - | - | |||||||
PACKAGING
 |

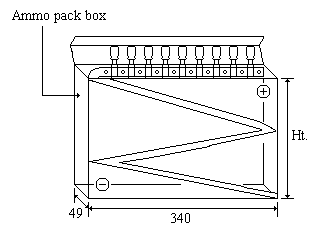

Unit: mm
|
