The lead cut or forming of capacitor makes it easy to insert the capacitors into the PC board and it contributes in improving the mounting productivity.

Forming Method	Code	Shape	Dimensions

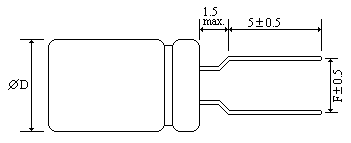

Forming Cut	FC		ØD 4 5 6.3 8 F 5 5 5 5

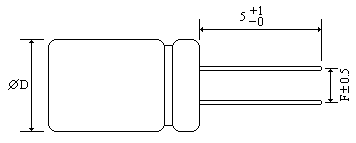

Straight Cut	CC		ØD = Ø4 to Ø22

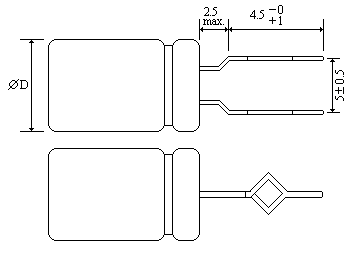

Snap-in Forming Cut	FM		ØD = Ø4 to Ø8

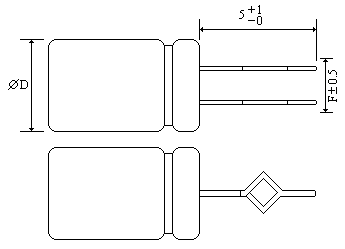

Snap-in Cut Lead Wire	MC		ØD = Ø10 to Ø22
