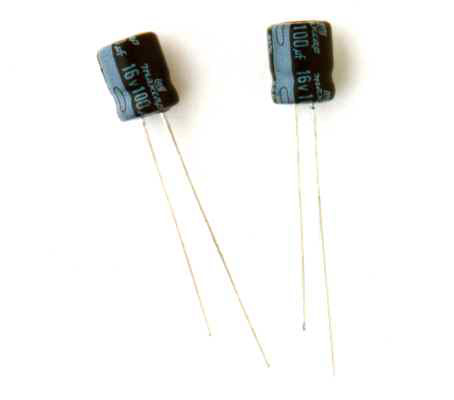

- Nominal case size: 4Ø ~ 6.3Ø x 7L
- 105°C operating temperature
- Designed for space saving and high density
insertion
- Applications: VTR, camera, car audio equipment,
etc.
- Case sizes are standard and can be changed upon
request
- 105°C, 1000 hours assured
- Lead cutting/forming and lead taping are available upon
request
|
CHARACTERISTICS
| Operating
Temperature Range |
-55 ~ +105°C |
| Capacitance
Tolerance |
| ±
20% (M) |
(at 20°C,
120Hz) |
|
| Leakage
Current |
| 0.01 CV (mA)
or 3 mA, whichever is larger after 2 minutes |
(at
20°C) |
|
| Dissipation
Factor |
| Rated
Voltage (V) |
4 |
6.3 |
10 |
16 |
25 |
35 |
50 |
63 |
| Dissipation
Factor |
0.33 |
0.22 |
0.19 |
0.16 |
0.14 |
0.12 |
0.10 |
0.08 |
(at 20°C, 120Hz) |
| Load Life |
The following specification shall be satisfied when the
capacitors are restored to 20°C after the rated working
voltage is applied for 1000 hours at maximum operating
temperature..
| Capacitance Change |
£ |
± 20% of the initial value |
| Dissipation Factor |
£ |
200% of the initial specified
value |
| Leakage Current |
£ |
The initial specified value |
|
| Others |
Satisfied characteristics W of JIS
C5141 |

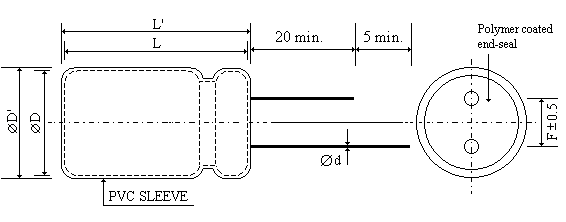

DIMENSIONS
 |
| ØD |
4 |
5 |
6.3 |
| Ød |
0.45 |
0.5 |
0.5 |
| F |
1.5 |
2.0 |
2.5 |
| L' |
L +
1.0 |
| ØD' |
ØD
+ 0.5 |
|
| mF |
V |
| 4 |
6.3 |
10 |
16 |
25 |
35 |
50 |
63 |
| 0.1 |
|
|
|
|
|
|
4x7 |
4x7 |
| 0.15 |
|
|
|
|
|
|
4x7 |
4x7 |
| 0.22 |
|
|
|
|
|
|
4x7 |
4x7 |
| 0.33 |
|
|
|
|
|
|
4x7 |
4x7 |
| 0.47 |
|
|
|
|
|
|
4x7 |
4x7 |
| 0.68 |
|
|
|
|
|
|
4x7 |
4x7 |
| 1 |
|
|
|
|
|
|
4x7 |
4x7 |
| 1.5 |
|
|
|
|
|
|
4x7 |
4x7 |
| 2.2 |
|
|
|
|
|
|
4x7 |
4x7 |
| 3.3 |
|
|
|
|
|
4x7 |
4x7 |
|
| 4.7 |
|
|
|
|
4x7 |
4x7 |
4x7 |
|
| 6.8 |
|
|
|
4x7 |
4x7 |
4x7 |
4x7 |
|
| 10 |
|
|
|
4x7 |
4x7 |
4x7 |
5x7 |
|
| 15 |
|
|
4x7 |
4x7 |
4x7 |
6.3x7 |
|
|
| 22 |
|
4x7 |
4x7 |
4x7 |
6.3x7 |
6.3x7 |
|
|
| 33 |
4x7 |
4x7 |
4x7 |
5x7 |
6.3x7 |
6.3x7 |
|
|
| 47 |
4x7 |
4x7 |
5x7 |
6.3x7 |
6.3x7 |
|
|
|
| 100 |
6.3x7 |
6.3x7 |
5x7 |
6.3x7 |
|
|
|
|
| 220 |
6.3x7 |
6.3x7 |
6.3x7 |
|
|
|
|
|
|
