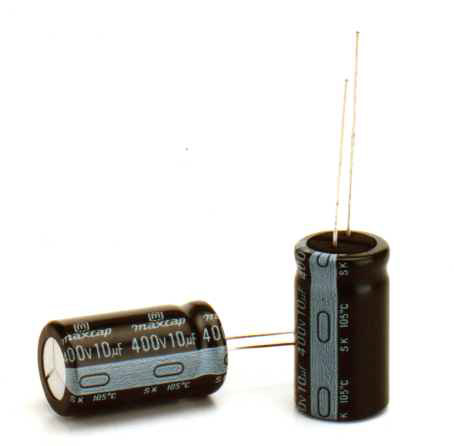

SK E-Cap Photo
  • 105°C standard series
  • Case sizes are standard and can be changed upon request
  • With higher permissible current than MKR series
  • 105°C, 3000 hours assured
  • Lead cutting/forming and lead taping are available upon
    request


CHARACTERISTICS

Rated Working Voltage 6.3 ~ 100V 160 ~ 450V
Operating Temperature Range - 55 ~ +105°C - 40 ~ +105°C
Capacitance Tolerance
± 20% (M) (at 20°C, 120Hz)
Leakage Current


Rated Voltage £ 100V >100V
Time 1 minute 2 minutes £ 1 minute £ 5 minutes
Leakage Current
0.02CV or 2mA
whichever is larger
CV £ 1000 CV > 1000 CV£ 1000 CV > 1000
0.1CV + 40 0.04CV + 100 0.03CV + 15 0.02CV + 25

(at 20°C)

Dissipation Factor
Rated Voltage (V) 6.3 10 16 25 35 50 63 80 100 160 200 250 350 ~ 450
Dissipation Factor 0.22 0.19 0.16 0.14 0.12 0.10 0.08 0.07 0.15 0.15 0.15 0.15

Note: For capacitors whose capacitance exceeds 1000mF, the value of DF should be increased by 0.02 for every 1000mF.

(at 20°C, 120Hz)

Load Life
The following specification shall be satisfied when the capacitors are restored to 20°C after the rated
working voltage is applied for 1000 hours (3000 hours for SK of Ø10 and above) at maximum operating temperature.

Rated Voltage (V)   6.3 ~ 16 25 ~ 100 160 ~ 450
Capacitance Change ± 25% ± 20% ± 20%
Dissipation Factor Less than 200% of the initial specified value
Leakage Current Less than the initial specified value
Others Satisfied characteristics W of JIS C5141


DIMENSIONS

Radial Lead Unit (mm)

E-Cap dimension

ØD 5 6.3 8 10 13 16 18
Ød 0.5 0.5 0.5 0.6 0.6 0.8 0.8
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5
L' L + 1.0 L + 1.5 L + 2.0
ØD' ØD + 0.5



CASE SIZES ØDxL (mm)
mF V
6.3 10 16 25 35 50 63 80 100 160 200 250 350 450
0.47           5x11     5x11 6.3x11     10x16
1           5x11     5x11 6.3x11   10x16 10x16 10x16
2.2           5x11 5x11   5x11 8x11.5   10x16 10x16 10x20
3.3           5x11 5x11   5x11 10x16 10x16 10x16 10x20 13x18
4.7       5x11 5x11 5x11 5x11   6.3x11 10x16 10x16 10x16 10x20 13x25
10     5x11 5x11 5x11 5x11 6.3x11   8x11.5 10x16 10x20 13x18 13x25 16x25
22   5x11 5x11 5x11 6.3x11 6.3x11 8x11.5 10x12.5 10x12.5 13x18 13x18 13x25 16x25
33 5x11 5x11 5x11 6.3x11 6.3x11 8x11.5 8x11.5 10x16 10x16 13x25 16x25 16x25 16x35.5
47 5x11 5x11 6.3x11 6.3x11 8x11.5 8x11.5 10x12.5 10x16 10x20 16x25 16x25 16x31.5
100 6.3x11 6.3x11 8x11.5 8x11.5 10x12.5 10x16 10x20 13x18 13x18 16x35.5 18x40
220 8x11.5 8x11.5 10x12.5 10x16 10x20 13x18 13x18 13x25 16x25
330 10x12.5 10x12.5 10x16 10x20 13x18 13x18 13x25 16x31.5 16x31.5
470 10x12.5 10x16 10x20 13x18 13x25 16x25 16x25 16x35.5 18x35.5
1000 10x20 13x18 13x25 16x25 16x25 16x31.5 18x35.5
2200 13x25 16x25 16x25 16x35.5 18x35.5
3300 16x25 16x31.5 16x35.5 18x40
4700 16x31.5 16x35.5 18x35.5
6800 16x35.5 18x40
10000 18x40
