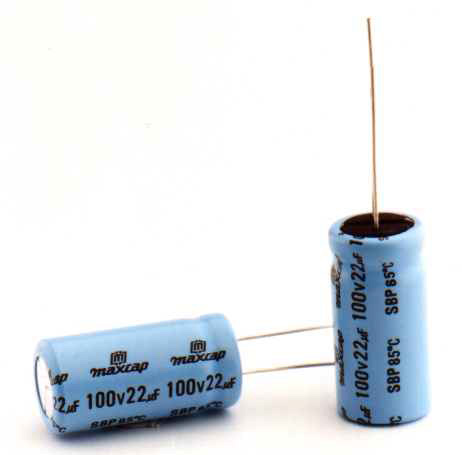

Bi-polar type of capacitors
Designed for use in speaker networks of Hi-Fi sound audio
systems and have excellent frequency characteristics
These capacitors cannot withstand an AC application which
exceeds the specified maximum permissible ripple current
rating
Lead cutting/forming and lead taping are available upon
request

CHARACTERISTICS

Operating Temperature Range

- 40 ~ +85°C

Rated Voltage Range

25 ~ 100V DC

Capacitance Tolerance

+ 20%(M) [ +10%(K) is available at request]

(at 20°C, 1kHz)

Leakage Current
(in both directions)

After 1 minute: 0.06CV (mA) or 10mA, whichever is greater
After 5 minutes: 0.03CV (mA) or 3mA, whichever is greater

Dissipation Factor

Rated Voltage (V)	25 ~ 35	50 ~ 63	100
Dissipation Factor	0.12	0.10	0.08

0.20 at 10kHz (Applicable to the capacitances of 10mFor less)

(at 1 kHz, 20°C)

Load Life

The following specifications shall be satisfied when the capacitors are restored to 20°C after the rated DC
voltage is applied for 5000 hours at 85°C. During this test, the rated DC voltage shall be reversed on the
capacitor every 250 hours.

Capacitance Change	£	± 15% of the initial value
Dissipation Factor	£	150% of the initial specified value
Leakage Current	£	The initial specified value

Others

Satisfies characteristic W of JIS C5141

DIMENSIONS

Radial Lead

Unit (mm)

ØD	5	6.3	8	10	13	16
F	2	2.5	3.5	5	5	7.5
Ød	0.5	0.5	0.5	0.6	0.6	0.8
L'	L + 1.0		L + 1.5			L + 2.0

CASE SIZES

ØDxL (mm)

mF	V
mF	25	35	50	63	100
0.33					8x11.5
0.47					8x11.5
0.68					10x12.5
1			8x11.5	10x12.5	10x12.5
1.5	8x11.5	8x11.5	8x11.5	10x12.5	10x16
2.2	8x11.5	8x11.5	10x12.5	10x12.5	10x20
3.3	8x11.5	8x11.5	10x12.5	10x12.5	10x20
4.7	10x12.5	10x12.5	10x16	10x16	10x20
6.8	10x12.5	10x12.5	10x16	10x20	10x20
10	10x16	10x16	10x16	13x20	13x20
15	10x16	10x16	10x20	13x20	13x20
22	10x20	10x20	10x20	13x25	13x25
33	10x20	10x20	13x20	16x25	16x25
47	10x20	10x20	13x20	16x25	16x31.5
68	13x20	13x20	13x25	16x31.5
100	13x25	13x25	16x25	16x35.5
