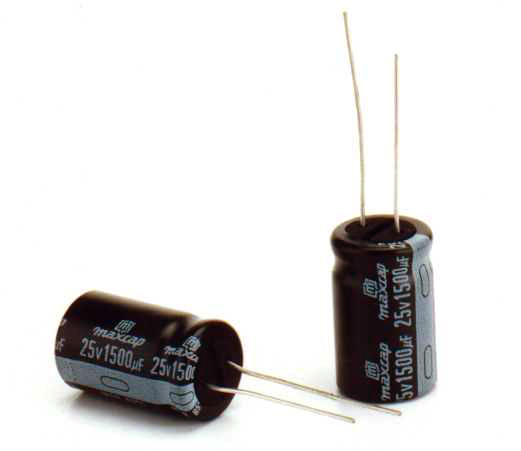

MKR E-Cap Photo Miniaturized Standard Series
  • Series for 105°C operating temperature
  • Case sizes are standard and can be changed upon request
  • 105°C, 3000 hours assured
  • Lead cutting/forming and lead taping are available upon
    request


CHARACTERISTICS

Rated Working Voltage 6.3 ~ 450V
Operating Temperature Range - 55°C ~ +105°C (for 6.3V ~ 100V) - 40°C ~ +105°C (for 160V ~ 250V)
Capacitance Tolerance
± 20% (M) (at 20°C, 120Hz)
Leakage Current


Rated Voltage £ 100V >100V
Time 1 minute 2 minutes < 1 minute £ 5 minutes
Leakage Current 0.03CV or 4mA
whichever is larger		 0.01CV or 3mA
whichever is larger		 CV£ 1000 CV > 1000 CV£ 1000 CV > 1000
0.1CV+40 0.04CV+100 0.03CV+15 0.02CV+25

(at 20°C)
Dissipation Factor
Rated Voltage (V) 6.3 10 16 25 35 50 63 100 160 ~ 250 350 ~ 450
Dissipation Factor 0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08 0.20 0.24

Note: For capacitors whose capacitance exceeds 1000mF, the value of DF should be increased by 0.02 for every 1000mF.

(at 20°C, 120Hz)
Load Life
The following specification shall be satisfied when the capacitors are restored to 20°C after the rated working
voltage is applied for 3000 hours at 105°C.
Rated Voltage (V) 6.3 ~ 16 25 ~ 100 160 ~ 250 350 ~ 450
Capacitance Change ± 20%
Dissipation Factor Less than 200% of the initial specified value
Leakage Current Less than the initial specified value
Others Satisfied characteristics W of JIS C5141


Dimensions

Radial Lead Unit (mm)

E-Cap dimension

ØD 5 6.3 8 10 13 16 18
Ød 0.5 0.5 0.5 0.6 0.6 0.8 0.8
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5
L' L + 1.0 L + 1.5 L + 2.0
ØD' ØD + 0.5



RIPPLE CURRENT COEFFICIENT

Temperature Coefficient
Ambient Temperature (°C) 105 85 65 and below
Temperature Coefficient 1.00 1.70 2.12
Frequency Coefficient
Capacitance (mF) Frequency (Hz)
60 (50) 120 500 1K 10K
< 100 0.80 1.00 1.20 1.30 1.50
100 ~ 1000 0.80 1.00 1.10 1.15 1.20
> 1000 0.80 1.00 1.05 1.10 1.15



CASE SIZES ØDxL (mm)
mF V
6.3 10 16 25 35 50 63 100 160 200 250 350 400 450
0.1           5x11   5x11
0.22           5x11   5x11
0.33           5x11   5x11
0.47           5x11   5x11 6.3x11 6.3x11 6.3x11 8x11.5
1           5x11   5x11 6.3x11 6.3x11 6.3x11 10x12.5 10x12.5 10x12
2.2           5x11   5x11 6.3x11 6.3x11 8x11.5 10x16 10x16 10x16
3.3           5x11   5x11 8x11.5 8x11.5 10x12.5 10x16 10x20 10x20
4.7       5x11 5x11 5x11 5x11 5x11 8x11.5 10x12.5 10x12.5 10x20 10x25 10x20
10     5x11 5x11 5x11 5x11 5x11 6.3x11 10x16 10x16 10x20 13x20 13x25 13x25
22   5x11 5x11 5x11 5x11 5x11 6.3x11 8x11.5 10x20 10x20 13x25 16x20 16x25 16x31.5
33 5x11 5x11 5x11 5x11 5x11 6.3x11 6.3x11 10x12.5 13x20 13x25 13x25 16x25 16x31.5 16x35
47 5x11 5x11 5x11 5x11 6.3x11 6.3x11 8x11.5 10x16 13x25 13x25 16x25 16x35 18x31.5 18x35.5
100 5x11 5x11 6.3x11 6.3x11 8x11.5 8x11.5 10x12.5 13x20 16x25 16x31.5 18x35.5 18x40
220 6.3x11 6.3x11 8x11.5 8x11.5 10x12.5 10x16 10x20 16x25 18x35.5 18x40
330 6.3x11 8x11.5 8x11.5 10x12.5 10x16 10x20 13x20 16x25
470 8x11.5 8x11.5 8x11.5 10x16 10x20 13x20 13x25 16x31.5
1000 10x12.5 10x16 10x16 13x20 13x25 16x25 16x31.5
2200 10x16 13x20 13x20 16x25 16x31.5 18x35.5
3300 10x20 13x25 16x25 16x31.5 18x35.5 18x40
4700 13x25 16x25 16x31.5 18x35.5 18x40
6800 16x25 16x31.5 18x35.5 18x40
10000 16x31.5 18x35.5 18x40
15000 18x35.5



MAXIMUM RIPPLE CURRENT (mA rms) At 105°C, 120Hz
mF V
6.3 10 16 25 35 50 63 100 160 200 250 350 400 450
0.1           3.8   4.2
0.22           5.6   6.3
0.33           6.9   7.7
0.47           8.3   8.8 6.7 6.7 6.7 7
1           12   13 9.9 9.9 9.9 12 12 13
2.2           18   19 15 15 17 20 20 22
3.3           22   23 20 20 24 24 27 31
4.7       22 24 26 28 30 25 29 29 32 35 41
10     31 33 35 38 41 49 47 47 50 55 60 68
22   42 45 49 52 57 69 84 75 75 90 91 100 100
33 47 51 55 59 64 80 85 120 100 110 110 125 135 160
47 57 61 66 71 87 96 120 160 130 130 145 170 175 191
100 82 89 110 120 150 160 200 280 210 230 240 280
220 140 150 190 200 260 310 350 500 360 436
330 170 210 230 290 350 410 480 610
470 230 250 320 380 450 540 620 780
1000 400 470 560 670 780 950 1080
2200 760 790 950 1110 1280 1480
3300 890 1000 1220 1380 1570 1850
4700 1230 1270 1490 1670 1860
6800 1340 1540 1790 1960
10000 1610 1770 2080
15000 1890
