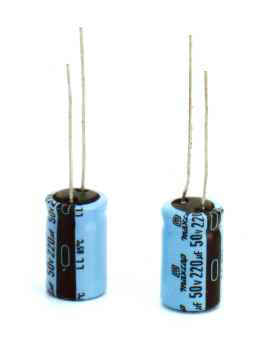

85°C operating temperature
Low leakage current
Excellent shelf performance
85°C, 3000 hours assured
Lead cutting/forming and lead taping are available upon
request

CHARACTERISTICS

Operating Temperature Range

- 40 ~ + 85°C

Capacitance Tolerance

- 20 ~ + 20%(M) [- 10 ~ +10%(K) is available at request]

(at 20°C, 120Hz)

Dissipation Factor

Rated Voltage (V)	6.3	10	16	25	35	50	63	80	100
Dissipation Factor	0.24	0.20	0.16	0.14	0.12	0.10	0.10	0.08	0.07

Note: For capacitors whose capacitance exceeds 1000mF, the value of DF should be increased by 0.02 for every 1000mF.

( at 20°C, 120Hz)

Leakage Current

Rated DC working voltage shall be applied to the capacitor in series with protective resistor of 1000.
The leakage current shall not exceed the following valeues after 1 minute at 20°C.

I = 0.002CV or 0.2mA, whichever is greater

Where

I : Leakage current,

C : Nominal capacitance (mF),

V : Rated Voltage (V)

Load Life

The following specification shall be satisfied when the capacitors are restored to 20°C after the rated working voltage is applied for 3000 hours at 85°C.

Capacitance Change	£	± 15% of the initial value
Dissipation Factor	£	150% of the initial specified value
Leakage Current	£	The initial specified value

Shelf Life

Accelerated test

The following specification shall be satisfied when the capacitors are restored to 20°C after exposing them
at 85°C for 500 hours without voltage. The rated voltage shall be applied to the capacitors for a minimum
of 30 minutes, at least 24 hours and not more than 48 hours before the measurements.

Capacitance Change	£	± 15% of the initial value
Dissipation Factor	£	150% of the initial specified value
Leakage Current	£	The initial specified value

Storage test

After exposing the capacitors at room temperature for 6 months without applying any voltage, capacitance DF shall meet the initial specified value and leakge current shall not exceed 150% of the initial specified value.

Others

Satisfies characteristic W of JIS C5141

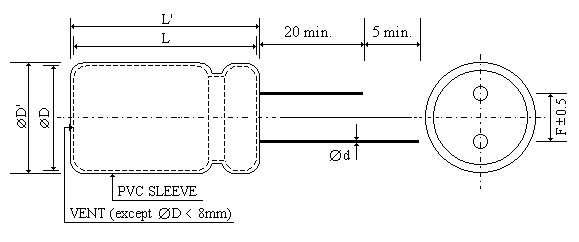

DIMENSIONS

Radial Lead

Unit (mm)

ØD	5	6.3	8	10	13	16	18
F	2	2.5	3.5	5	5	7.5	7.5
Ød	0.5	0.5	0.5	0.6	0.6	0.8	0.8
L'	L + 1.0		L + 1.5 max.			L + 2.0 max.
ØD'	ØD + 0.5 max.

CASE SIZES

ØDxL (mm)

mF	V
mF	6.3	10	16	25	35	50	63	80	100
0.1						5x11			5x11
0.15						5x11			5x11
0.22						5x11			5x11
0.33						5x11			5x11
0.47						5x11			5x11
0.68						5x11			5x11
1						5x11			5x11
1.5						5x11			5x11
2.2						5x11		5x11	6.3x11
3.3						5x11		6.3x11	8x11.5
4.7				5x11	5x11	6.3x11		6.3x11	8x11.5
6.8				5x11	5x11	6.3x11	6.3x11	8x11.5	10x12.5
10			5x11	6.3x11	6.3x11	8x11.5	8x11.5	10x12.5	10x16
15			5x11	6.3x11	8x11.5	8x11.5	10x12.5	10x12.5	10x16
22		5x11	6.3x11	8x11.5	8x11.5	10x12.5	10x16	10x16	10x20
33		6.3x11	6.3x11	8x11.5	10x12.5	10x16	10x16	10x16	13x18
47		6.3x11	8x11.5	10x12.5	10x12.5	10x16	10x20	10x20	13x25
68		6.3x11	8x11.5	10x12.5	10x16	10x20	10x20	13x18	13x25
100		8x11.5	10x12.5	10x16	10x20	13x18	13x18	13x25	16x25
150		10x12.5	10x16	10x20	13x18	13x25	13x25	16x25	16x31.5
220	10x12.5	10x16	10x20	13x18	13x25	16x25	16x25	16x31.5	18x35.5
330	10x16	10x20	13x18	13x25	16x25	16x31.5	16x35.5	18x35.5	18x40
470	10x20	13x18	13x25	16x25	16x25	16x35.5	18x35.5	18x35.5
680	13x18	13x18	16x25	16x31.5	16x31.5	18x35.5	18x35.5
1000	13x25	13x25	16x31.5	16x35.5	18x35.5	18x40
1500	13x25	16x25	18x35.5	18x40	18x40
2200	16x25	16x31.5	18x40
3300	16x31.5	16x35.5
4700	18x35.5	18x40
