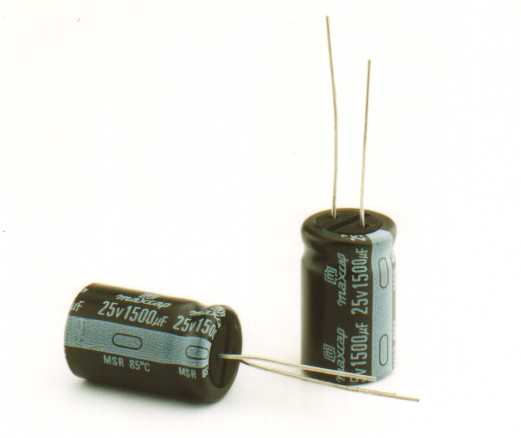

MSR E-Cap Photo Miniaturized Standard Series
  • Series for 85°C operating temperature
  • Case sizes are standard and can be changed upon request
  • 85°C, 5000 hours assured
  • Lead cutting/forming and lead taping are available upon
    request.


CHARACTERISTICS

Rated Working Voltage 6.3 ~ 450V
Operating Temperature Range -40 ~ +85°C
Capacitance Tolerance
± 20% (M) (at 20°C, 120Hz)
Leakage Current
Rated Voltage £ 100V >100V
Time 1 minute 2 minutes £ 1 minute £ 5 minutes
Leakage Current 0.03CV or 4mA
whichever is larger		 0.01CV or 3mA
whichever is larger		 CV £ 1000 CV > 1000 CV£ 1000 CV > 1000
0.1CV + 40 0.04CV + 100 0.03CV + 15 0.02CV + 25

(at 20°C)
Dissipation Factor
Rated Voltage (V) 6.3 10 16 25 35 50 63 100 160 ~ 250 350 ~ 450
Dissipation Factor 0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08 0.20 0.24

Note: For capacitors whose capacitance exceeds 1000mF, the value of DF should be increased by 0.02 for every 1000mF.

(at 20°C, 120Hz)
Load Life
The following specification shall be satisfied when the capacitors are restored to 20°C after the rated working
voltage is applied for 5000 hours at 85°C.
Rated Voltage (V)   6.3 ~ 16 25 ~ 100 160 ~ 250 350 ~ 450
Capacitance Change case dia.
(mm)		 £ 6.3 ± 20% ± 20% ± 20% ± 20%
> 6.3 ± 20% ± 15%
Dissipation Factor Less than 150% of the initial specified value Less than 200% of the
initial specified value		 Less than 200% of the
initial specified value
Leakage Current Less than the initial specified value
Others Satisfied characteristics W of JIS C5141


DIMENSIONS

Radial Lead Unit (mm)

E-Cap dimension

ØD 5 6.3 8 10 13 16 18 22
Ød 0.5 0.5 0.5 0.6 0.6 0.8 0.8 1.0
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5 10
L' L + 1.0 L + 1.5 L + 2.0
ØD' ØD + 0.5



RIPPLE CURRENT COEFFICIENT

Temperature Coefficient
Ambient Temperature (°C) 85 70 50 and below
Temperature Coefficient 1.00 1.58 2.00
Frequency Coefficient
Capacitance (mF) Frequency (Hz)
60 (50) 120 500 1K 10K
< 100 0.80 1.00 1.20 1.30 1.50
100 ~ 1000 0.80 1.00 1.10 1.15 1.20
> 1000 0.80 1.00 1.05 1.10 1.15



CASE SIZES ØDxL (mm)
mF V
6.3 10 16 25 35 50 63 100 160 200 250 350 400 450
0.1           5x11   5x11
0.22           5x11   5x11
0.33           5x11   5x11
0.47           5x11   5x11 6.3x11 6.3x11 6.3x11 8x11.5
1           5x11   5x11 6.3x11 6.3x11 6.3x11 8x11.5 8x11.5 10x12.5
2.2           5x11   5x11 6.3x11 6.3x11 8x11.5 10x12.5 10x12.5 10x16
3.3           5x11   5x11 8x11.5 6.3x11 8x11.5 10x16 10x16 10x20
4.7       5x11 5x11 5x11 5x11 5x11 8x11.5 8x11.5 10x12.5 10x16 10x16 13x20
10     5x11 5x11 5x11 5x11 5x11 6.3x11 10x16 10x12.5 10x16 13x20 13x20 13x25
22   5x11 5x11 5x11 5x11 5x11 6.3x11 8x11.5 10x20 10x20 13x20 13x25 16x25 16x25
33 5x11 5x11 5x11 5x11 5x11 6.3x11 6.3x11 10x12.5 13x20 13x25 13x25 16x25 16x31.5 16x31.5
47 5x11 5x11 5x11 5x11 6.3x11 6.3x11 8x11.5 10x16 13x25 13x25 16x25 16x31.5 16x35.5
100 5x11 5x11 6.3x11 6.3x11 8x11.5 8x11.5 10x12.5 13x20 16x25 16x31.5 18x35.5 18x40 22x42
220 6.3x11 6.3x11 8x11.5 8x11.5 10x12.5 10x16 10x20 16x25 18x35.5 18x40
330 6.3x11 8x11.5 8x11.5 10x12.5 10x16 10x20 13x20 16x31.5
470 8x11.5 8x11.5 10x12 10x16 10x20 13x20 13x25 18x35.5
1000 10x12.5 10x16 10x16 13x20 13x25 16x25 16x31.5
2200 10x16 13x20 13x20 16x25 16x31.5 18x35.5
3300 13x20 13x25 16x25 16x31.5 18x35.5 18x40
4700 13x25 16x25 16x31.5 18x35.5 18x40
6800 16x25 16x31.5 16x35.5 18x40
10000 16x31.5 18x35.5 18x35.5
15000 18x35.5



MAXIMUM RIPPLE CURRENT (mA rms) At 85°C, 120Hz
mF V
6.3 10 16 25 35 50 63 100 160 200 250 350 400 450
0.1           5.4   5.9
0.22           7.9   8.9
0.33           9.8   10.9
0.47           11   12 9.5 9.5 9.5 9.9
1           17   18 14 14 14 17 17 18
2.2           25   27 21 21 24 28 28 31
3.3           31   33 28 28 34 34 38 44
4.7       31 34 37 40 42 35 35 41 45 50 58
10     44 47 49 54 58 69 66 66 71 78 85 95
22   59 64 69 73 81 98 120 110 110 130 130 140 140
33 66 72 78 83 91 110 120 170 140 160 160 175 190 225
47 81 86 93 100 120 140 170 230 180 180 210 240 250
100 120 130 160 170 210 230 280 400 300 330 340 400
220 200 210 270 280 370 440 490 710 510 620
330 240 300 330 410 490 580 680 860
470 330 350 450 540 640 760 880 1100
1000 570 660 790 950 1100 1340 1530
2200 1070 1110 1340 1570 1810 2090
3300 1260 1410 1720 1950 2220 2500
4700 1740 1800 2100 2360 2630
6800 1900 2180 2500 2740
10000 2280 2500 2790
15000 2670
