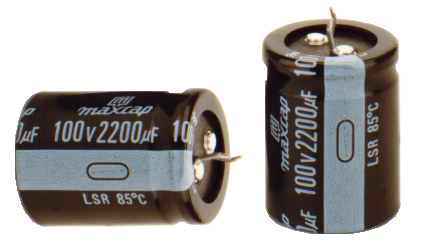

LSR E-Cap Photo
  • High capacitance, general purpose capacitor
  • Operating temperature at 85°C
  • High ripple current


CHARACTERISTICS

Rated Working Voltage 10 ~ 450V
Operating Temperature Range - 40°C + 85°C
Capacitance Tolerance
± 20% (M) (at 20°C, 120Hz)
Leakage Current
10 ~ 100V : I = 0.02CV or mA, whichever is smaller
160 ~ 250V : I = 0.03CV
315 ~ 450V : I = 0.06CV + 200 or 5mA, whichever is smaller
Where I : Maximum leakage current (mA) at 20°C (after 5 minutes)
C : Nominal capacitance (mF)
V : Rated voltage (V)
Dissipation Factor Dissipation factor at 20°C, 120Hz shall not exceed the values given in the table of STANDARD RATING
Low Temperature Characteristics (Impedance Ratio at 120Hz)
Z Ratio W.V.
10 ~ 100 160 ~ 450
Z(- 25°C)/Z(20°C) 4 4
Z(- 40°C)/Z(20°C) 15 -
Maximum Ripple Current Maximum rms ripple current at 85°C, 120Hz is given in the table of STANDARD RATING
Load Life The following specification shall be satisfied when the capacitors are restored to 20°C after the rated voltage is applied for 4000 hours at 85°C
Capacitance Change £ ± 20% of the initial value
Dissipation Factor £ 200% of the initial specified value
Leakage Current £ The initial specified value
Others Satisfies characteristic W of JIS C5141

Dimensions

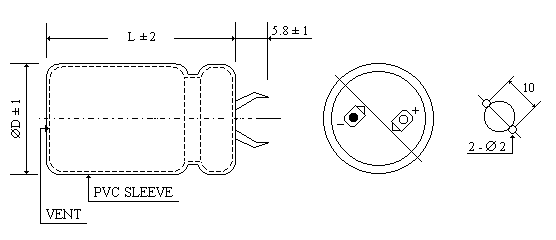

D = 22Ø - 30Ømm Unit (mm)
VST Type PC Board Pin-Out

VST Type

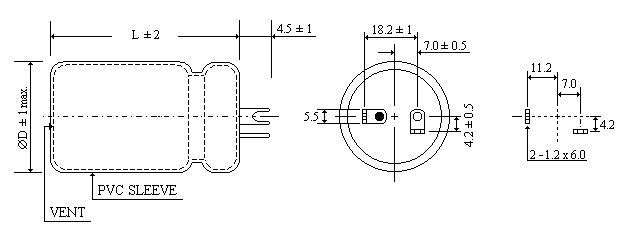

D = 35Ø - 40Ømm Unit (mm)
VIT Type PC Board Pin-Out

VIT Type

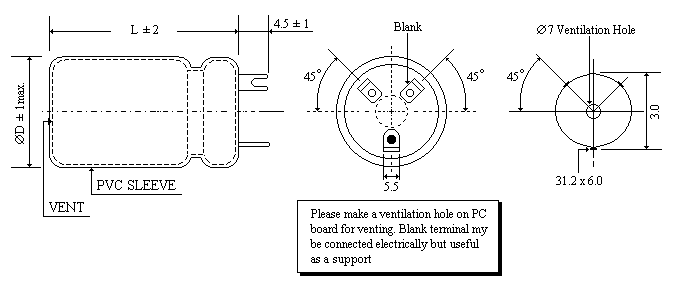

D = 50Ø - 63.5Ømm Unit (mm)
VBT Type PC Board Pin-Out

VBT Type

STANDARD RATING

Rated Voltage (V) Surge Voltage (V) Capacitance (mF) Case Size
ØDxL (mm)		 DF at 20°C, 120Hz Max. Ripple Current
(A rms)
at 85°C, 120Hz
10 13 6800
8200 22x30 0.35 2.43
25.4x25 0.35 2.42
10000 22x30 0.40 2.50
25.4x25 0.40 2.49
12000 22x30 0.40 2.74
30x25 0.40 2.86
15000 22x35 0.40 3.20
30x25 0.40 3.20
18000 22x40 0.40 3.40
30x30 0.40 3.47
22000 22x45 0.40 3.85
30x30 0.40 3.84
16 20 4700 25.4x25 0.25 2.18
6800 22x30 0.25 2.39
25.4x25 0.25 2.38
8200 22x30 0.35 2.43
30x25 0.35 2.54
10000 22x35 0.40 2.57
30x25 0.40 2.61
12000 22x40 0.40 2.88
30x30 0.40 2.94
15000 22x45 0.40 3.30
35x25 0.40 3.36
18000 22x50 0.40 3.58
35x30 0.40 3.60
22000 25.4x45 0.40 4.02
35x30 0.40 3.98
25 32 3300 25.4x25 0.25 1.83
4700 22x30 0.25 2.19
25.4x25 0.25 2.18
6800 22x35 0.25 2.45
30x25 0.25 2.50
8200 22x40 0.35 2.55
30x30 0.35 2.60
10000 22x45 0.35 2.89
30x30 0.35 2.87
12000 22x50 0.35 3.25
35x30 0.35 3.35
15000 25.4x25 0.35 3.69
35x30 0.35 3.74
18000 30x40 0.35 3.74
35x35 0.35 3.92
22000 30x50 0.35 4.38
40x35 0.35 4.62
35 44 2200 25.4x25 0.20 1.67
3300 22x30 0.20 2.06
25.4x25 0.20 2.05
4700 22x35 0.25 2.24
30x25 0.25 2.28
6800 22x40 0.25 2.52
30x30 0.25 2.57
8200 22x50 0.35 2.69
35x30 0.35 2.76
10000 25.4x45 0.35 3.01
35x30 0.35 3.05
12000 25.4x50 0.35 3.37
35x35 0.35 3.42
15000 30x45 0.35 3.93
40x35 0.35 4.08
18000 40x40 0.35 4.30
22000 40x40 0.35 4.76
50 63 1000 25.4x25 0.20 1.13
2200 22x30 0.20 1.68
25.4x25 0.20 1.67
3300 22x35 0.20 2.11
30x25 0.20 2.15
4700 22x40 0.25 2.30
35x25 0.25 2.39
6800 25.4x25 0.25 2.69
35x30 0.25 2.73
8200 30x45 0.35 2.90
35x35 0.35 2.83
10000 30x50 0.35 3.28
40x35 0.35 3.33
12000 40x40 0.35 3.76
15000 50x40 0.35 4.71
18000 50x40 0.35 4.82
22000 50x40 0.35 5.32
63 79 1000 22x30 0.15 1.32
25.4x25 0.15 1.31
2200 22x35 0.15 2.10
30x25 0.15 2.05
3300 22x45 0.15 2.58
35x25 0.15 2.63
4700 25.4x25 0.20 2.76
35x30 0.20 2.80
6800 30x45 0.20 3.54
40x35 0.20 3.68
8200 40x40 0.25 3.70
Rated Voltage (V) Surge Voltage (V) Capacitance (mF) Case Size
ØDxL (mm)		 DF at 20°C, 120Hz Max. Ripple Current
(A rms)
at 85°C, 120Hz
63 79 10000 40x40 0.25 4.09
12000 50x40 0.25 5.01
15000 50x40 0.30 5.60
18000 50x50 0.30 5.83
22000 505x50 0.30 6.44
80 100 1000 22x30 0.15 1.32
25.4x25 0.15 1.31
2200 22x40 0.15 2.06
35x25 0.15 2.14
3300 25.4x25 0.15 2.70
35x30 0.15 2.73
4700 30x45 0.20 2.94
40x35 0.20 3.06
6800 40x40 0.20 3.79
8200 50x40 0.25 4.14
10000 50x40 0.25 4.57
12000 50x50 0.25 5.23
15000 50x50 0.25 5.85
100 125 1000 22x35 0.15 1.35
30x25 0.15 1.38
2200 25.4x25 0.15 2.20
35x30 0.15 2.23
3300 30x45 0.15 2.87
40x35 0.15 2.98
4700 40x40 0.15 3.67
6800 50x40 0.15 4.24
8200 50x50 0.20 4.86
10000 50x50 0.20 5.36
160 200 330 22x30 0.15 0.75
25.4x25 0.15 0.75
470 22x35 0.15 0.93
30x25 0.15 0.94
680 22x50 0.15 1.20
35x25 0.15 1.19
820 25.4x45 0.15 1.34
35x30 0.15 1.31
1000 25.4x50 0.15 1.51
35x35 0.15 1.54
180 225 220 22x30 0.15 0.62
25.4x25 0.15 0.61
330 22x35 0.15 0.77
30x25 0.15 0.79
470 22x40 0.15 0.95
30x30 0.15 0.97
680 25.4x25 0.15 1.22
35x30 0.15 1.24
820 25.4x50 0.15 1.37
35x30 0.15 1.36
1000 30x45 0.15 1.58
35x35 0.15 1.54
200 250 220 22x30 0.15 0.62
25.4x25 0.15 0.61
330 22x35 0.15 0.77
30x25 0.15 0.79
470 22x45 0.15 0.97
30x30 0.15 0.97
680 25.4x45 0.15 1.22
35x30 0.15 1.24
820 30x45 0.15 1.43
35x35 0.15 1.39
250 300 220 22x35 0.15 0.63
30x25 0.15 0.64
330 22x45 0.15 0.81
30x30 0.15 0.81
470 25.4x45 0.15 1.01
35x30 0.15 1.03
680 30x45 0.15 1.30
35x35 0.15 1.27
315 365 100 22x30 0.23 0.33
25.4x25 0.23 0.33
220 22x45 0.23 0.53
30x30 0.23 0.53
330 25.4x50 0.23 0.69
35x35 0.23 0.69
470 30x50 0.23 0.88
350 400 82 22x30 0.20 0.32
25.4x25 0.20 0.32
100 22x30 0.23 0.33
30x25 0.23 0.34
220 22x50 0.23 0.54
35x30 0.23 0.56
330 30x45 0.23 0.72
35x35 0.23 0.70
400 450 82 22x30 0.20 0.32
30x25 0.20 0.33
100 22x40 0.23 0.35
30x25 0.23 0.34
220 30x40 0.23 0.57
35x35 0.23 0.57
