LKS E-Cap Photo
  • Screw terminal type
  • High reliability, high ripple current
  • 105°C, 2000 hours assured with rated ripple current applied


CHARACTERISTICS

Rated Working Voltage 10 ~ 400V
Operating Temperature Range -40 ~ +105°C
Capacitance Tolerance
± 20% (M) (at 20°C, 120Hz)
Leakage Current
(mA, MAX)
I = 0.02CV or 5mA, whichever is smaller after 5 minutes
Where I : Maximum Leakage Current (mA)
C : Nominal Capacitance (mF)
V : Rated Working Voltage (V)

(at 20°C)
Dissipation Factor
(tan d, MAX)
WV ØD
35.0 50.0 63.5 76.0 89.0
10 0.75 1.0 1.3 1.5 1.5
16 0.6 0.7 0.8 1.0 1.0
25 0.4 0.5 0.7 0.8 0.8
35 0.3 0.5 0.6 0.7 0.7
50 0.25 0.3 0.5 0.6 0.6
63 0.2 0.25 0.3 0.4 0.4
80 0.2 0.2 0.25 0.3 0.3
100 0.15 0.2 0.25 0.25 0.25
160 ~ 250 0.15 0.15 0.2 0.2 0.2
315 ~ 400 0.2 0.2 0.25 0.25 0.25

(at 20°C, 120Hz)
Load Life The following specification shall be satisfied when the capacitors are restored to 20°C after the rated
working voltage is applied for 2000 hours at 105°C.
Capacitance Change £ ± 20% of the initial specified value
Dissipation Factor £ 200% of the specification
Leakage Current £ The initial specified value
Shelf Life The following specification shall be satisfied when the capacitors are restored to 20°C after exposing them
to the maximum operating temperature for 500 hours without voltage. The rated voltage shall be applied
to the capacitors for a minimum of 30 minutes, at least 24 hours and not more than 48 hours before the
measurements.
Capacitance Change £ ± 20% of the initial specified value
Dissipation Factor (tan d) £ 200% of the specification
Leakage Current £ The specification
Others Satisfied characteristics B of JIS C5141

DIMENSIONS

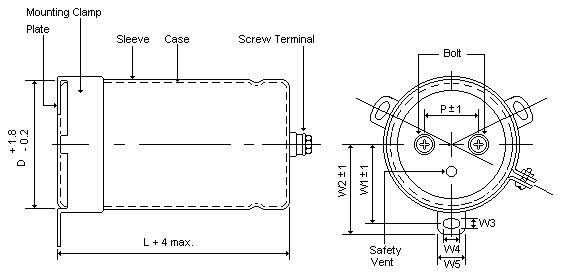

Screw Type: Ø35.0 Dimension Unit (mm)

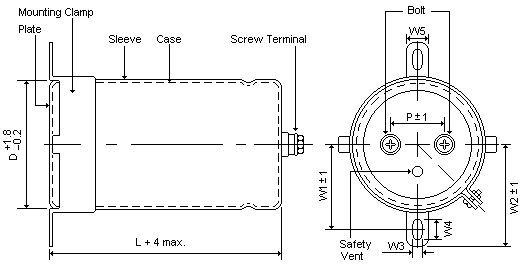

Screw Type: Ø50.0, Ø63.5, Ø76.0 and Ø89.0 Dimensions Unit (mm)

ØD W1 W2 W3 W4 W5 P
35 24.0 29.0 3.5 6 10 12.7
50 32.5 37.0 4.5 8 14 21.8
63.5 38.0 43.5 4.5 8 14 28.2
76.0 44.5 50.0 4.5 8 14 31.4
89.0 50.8 56.5 4.5 8 16 31.4
Screw specifications:
  1. Headed screw: M5x0.8x10
  2. Maximum screw tightening torque: 33kg . cm (3.23N . m)
  3. Maximum ripple current shall be 50A rms.
    Due to the rated current of M5 screw terminal.



SIZE CODE ØDxL (mm)
Size D L
A5 35.0 50.0
A6 35.0 60.0
A8 35.0 80.0
A10 35.0 100.0
A12 35.0 120.0
C8 50.0 80.0
Size D L
C10 50.0 100.0
C12 50.0 120.0
D10 63.5 100.0
D12 63.5 120.0
D14 63.5 140.0
E10 76.0 100.0
Size D L
E12 76.0 120.0
E14 76.0 140.0
E15 76.0 150.0
F14 89.0 140.0
F15 89.0 150.0

MULTIPLYING FACTOR

1. Temperature Coefficient
Ambient Temperature (°C) 40 60 85 105
Multiplier 3.0 2.7 2.0 1.0
2. Frequency Coefficient
Frequency (Hz) 60 120 400 1k ³10k
Frequency Coefficient 10 ~ 50WV 0.8 1.0 1.03 1.05 1.08
63 ~ 100WV 0.8 1.0 1.05 1.07 1.10
160 ~ 400WV 0.8 1.0 1.10 1.13 1.18



CASE SIZE AND RIPPLE CURRENT
mF WV
10 16 25 35 50 63 80
Size
Code		 Ripple
Current
A rms
105°C
120Hz		 Size
Code		 Ripple
Current
A rms
105°C
120Hz		 Size
Code		 Ripple
Current
A rms
105°C
120Hz		 Size
Code		 Ripple
Current
A rms
105°C
120Hz		 Size
Code		 Ripple
Current
A rms
105°C
120Hz		 Size
Code		 Ripple
Current
A rms
105°C
120Hz		 Size
Code		 Ripple
Current
A rms
105°C
120Hz
3300                         A5 3.0
3900                         A6 3.3
4700                     A5 3.2 A8 3.6
5600                     A6 3.5 A8 3.9
6800             A5 2.5 A5 3.6 A6 3.8 A8 4.3
8200             A5 2.8 A6 3.9 A8 4.3 A10 5.1
10000             A5 3.8 A8 4.2 A8 4.7 A12 5.8
12000             A6 4.3 A8 5.0 A10 5.6 C8 7.0
15000         A5 4.2 A8 4.7 A10 5.5 A12 6.4 C8 7.6
18000         A6 4.6 A8 5.1 A10 5.7 C8 7.5 C10 7.7
22000     A5 4.0 A8 5.2 A10 6.6 A12 7.5 C8 7.5 C12 9.0
27000 A5 4.4 A6 5.0 A8 5.4 A12 6.7 C8 7.5 C10 8.7 D10 10.1
33000 A6 5.5 A8 5.2 A10 6.5 C8 7.1 C10 9.3 C12 10.3 D12 11.6
39000 A6 6.0 A8 5.8 A10 7.5 C8 8.4 C10 9.4 D10 11.2 D14 13.5
47000 A8 6.6 A10 6.8 A12 8.9 C10 9.9 C12 11.7 D12 12.9 E10 15.8
56000 A8 7.5 A10 6.9 C8 10.0 C10 10.3 D10 12.4 D14 15.2 E12 17.0
68000 A10 7.6 A12 8.4 C10 10.7 C12 11.4 D12 15.1 E10 16.0 E14 20.4
82000 A12 9.0 C8 8.4 C10 12.0 D10 12.5 E10 15.5 E12 17.7 E15 21.5
100000 C8 10.2 C10 11.3 C12 13.1 C12 15.5 E10 16.3 E14 21.5 E15 22.3
120000 C8 11.0 C10 11.4 D10 13.7 E10 15.5 E12 19.1 F14 22.4
150000 C10 13.4 C12 12.5 D12 16.4 E12 17.9 E14 23.4
180000 C12 14.0 D10 14.2 E10 16.7 E14 20.0 E14 23.7
220000 D10 14.5 D12 16.6 E12 20.5 E15 24.1
270000 D12 16.0 E10 17.5 E14 21.3 F14 26.5
330000 E10 18.0 E12 24.3 E15 26.0
390000 E10 19.5 E14 25.2 F14 27.2
470000 E12 20.0 E15 26.7
560000 E14 24.1 F14 29.1
680000 F14 26.5





mF WV
100 160 200 250 315 350 400
Size
Code		 Ripple
Current
A rms
105°C
120Hz		 Size
Code		 Ripple
Current
A rms
105°C
120Hz		 Size
Code		 Ripple
Current
A rms
105°C
120Hz		 Size
Code		 Ripple
Current
A rms
105°C
120Hz		 Size
Code		 Ripple
Current
A rms
105°C
120Hz		 Size
Code		 Ripple
Current
A rms
105°C
120Hz		 Size
Code		 Ripple
Current
A rms
105°C
120Hz
220                     A5 0.9 A5 1.0
270                 A5 1.0 A5 1.0 A6 1.0
330                 A5 1.2 A6 1.2 A6 1.2
390                 A6 1.3 A8 1.3 A8 1.4
470             A5 1.3 A8 1.5 A8 1.5 A10 1.5
560         A5 1.4 A6 1.6 A8 1.6 A10 1.7 A10 1.7
680         A5 1.5 A8 1.7 A10 1.9 A10 1.9 C8 2.3
820     A5 1.4 A8 1.9 A10 2.2 A12 2.1 C10 2.4 C10 2.5
1000     A6 1.9 A8 2.2 A10 2.3 C8 2.3 C10 2.5 C12 2.7
1200     A8 2.3 A8 2.3 A10 2.4 C10 2.7 C10 2.7 C12 3.0
1500     A8 2.6 A10 2.9 A12 2.9 C10 3.1 C12 3.3 D10 3.5
1800     A8 2.6 A10 2.9 A12 3.0 C12 3.6 D10 3.8 D12 3.6
2200 A5 2.9 A10 3.2 A12 3.3 C10 3.8 D10 4.2 D12 4.6 E10 4.1
2700 A6 3.4 A12 3.2 C8 3.8 C12 4.5 D12 4.3 E10 4.6 E12 4.8
3300 A8 3.9 A12 3.7 C10 4.7 D10 5.2 E12 4.9 E14 5.3 E14 5.7
3900 A8 4.2 C10 4.3 C12 5.4 D12 5.2 E12 5.8 E14 6.2 F14 6.7
4700 A8 4.6 C10 4.8 D10 6.2 D12 5.7 E12 6.3 F14 7.4 F14 7.4
5600 A10 4.9 C12 5.5 D10 6.3 E10 6.4 E14 7.3 F14 8.1
6800 A12 5.5 D10 6.3 D12 7.3 E12 7.6 F14 8.9
8200 C8 6.2 D12 7.1 E10 8.5 E14 8.3
10000 C10 6.7 E10 7.9 E12 9.5 F14 9.9
12000 C10 7.3 E12 9.0 E14 10.5 F14 10.8
15000 C12 8.6 E14 11.3 F14 12.5
18000 D10 8.9 F14 13.0 F14 13.3
22000 D12 10.3 F14 14.3
27000 D14 12.1
33000 E12 14.1
39000 E14 16.5
47000 E14 18.3
56000 F14 19.2
68000 F15 20.1
